AUTOOL OD720 Pneumatic Oil Drainer & Extractor Vacuum Oil Pumping Machine Waste Oil Drain Tank 10L Large Capacity Portable Oil Drain Container W/ 4 Wheels for Waste Oil Recycling

Walmart

AUTOOL OD720 Pneumatic Oil Drainer & Extractor Vacuum Oil Pumping Machine Waste Oil Drain Tank 10L Large Capacity Portable Oil Drain Container W/ 4 Wheels for Waste Oil Recycling

$459.99 ~~$0.00~~ -0% Elige el envío y el peso para ver el precio

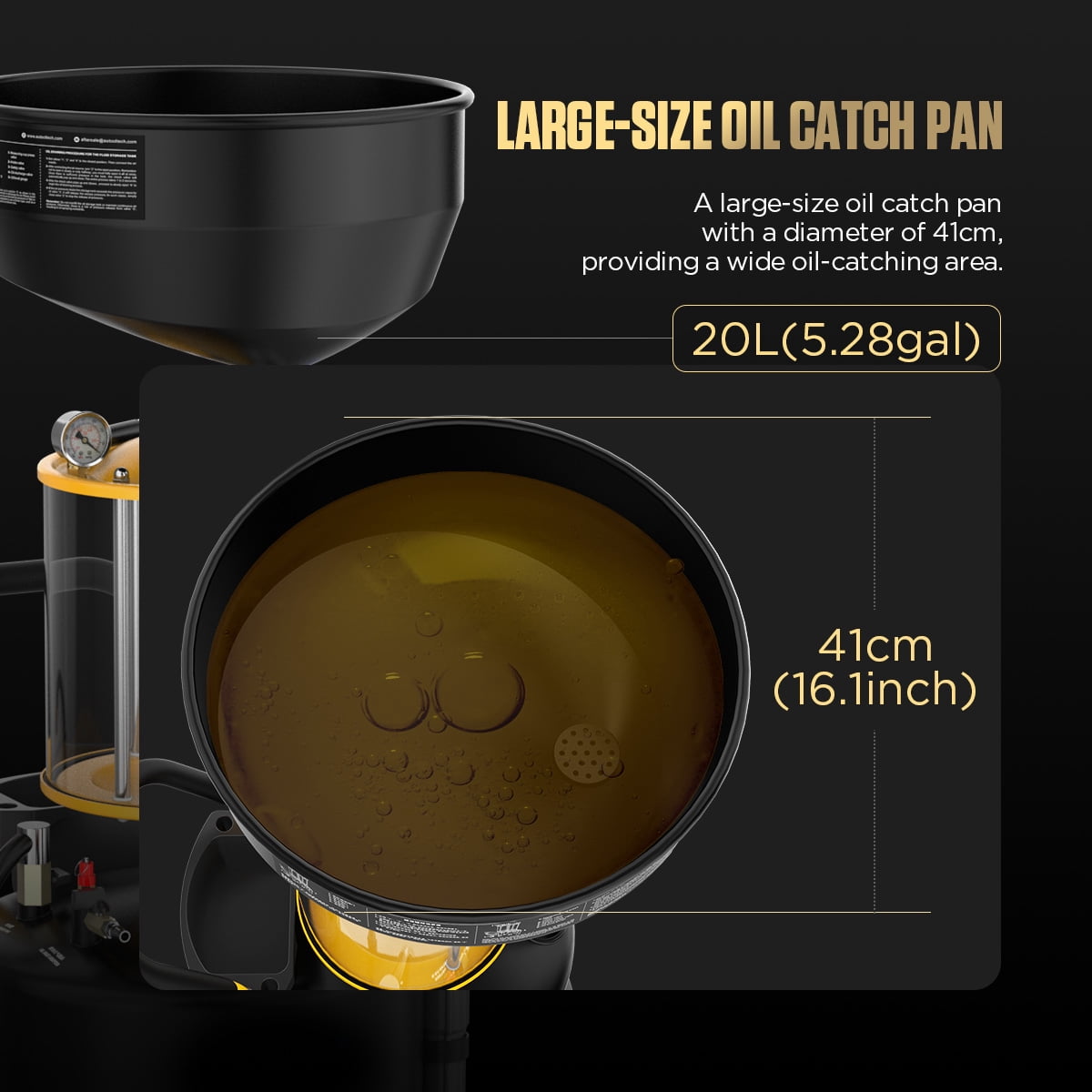

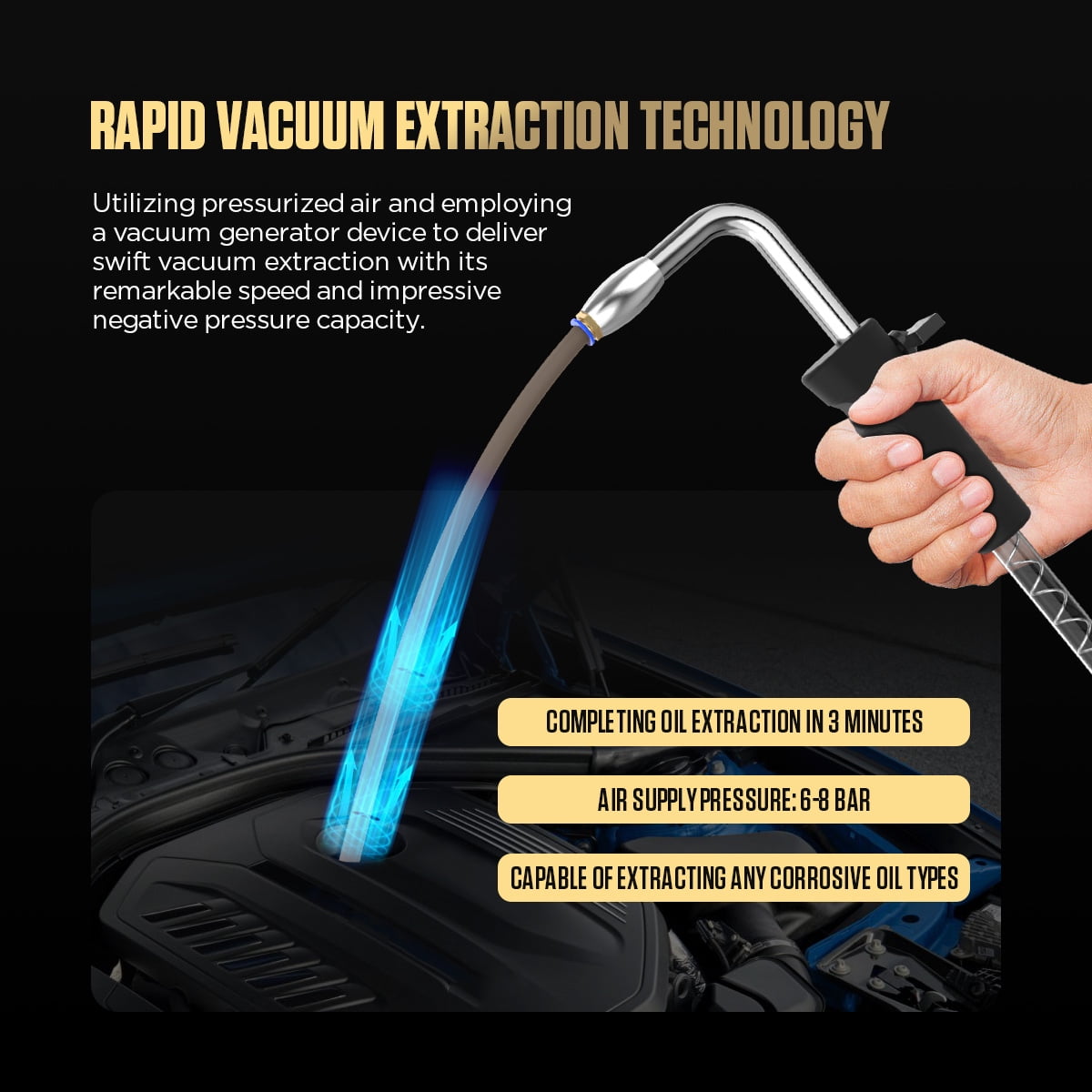

AUTOOL OD720 Pneumatic Oil Pumping Machine Features Vacuum Extraction Technology: AUTOOL OD720 pneumatic oil extractor uses compressed air and adopts a vacuum-generating device to quickly evacuate, with fast speed and strong negative pressure capability. Large Capacity: AUTOOL OD720 pneumatic oil drainer & extractor has a large oil receiving pan with a diameter of 16.1", which has a large oil receiving area when discharging waste oil. At the same time, the oil receiving pan has a large capacity of 20L, which can hold more waste oil. Waste oil drain tank has a large capacity of 70 liters and is made of 1.5 mm thick material to effectively prevent oil and air leaks. Visible Explosion-proof Tempered Measuring Cup: AUTOOL OD720 measuring cup is crafted from explosion-resistant tempered glass. It has the characteristics of high strength, high temperature resistance and corrosion resistance, and can store all kinds of corrosive waste oil. At the same time, the measuring cup has a scale design of 10L, which is convenient for maintenance personnel to observe the quality and volume of oil. It is also equipped with an oil level sight window for monitoring waste oil recovery, making it easy to determine when to drain waste oil from the tank. Adjustable Height & Easy to Move: AUTOOL OD720 pneumatic oil picker has a height-adjustable lifting rod structure. The maximum adjustable height is 1.5 meters. The appropriate height can be adjusted as needed. OD720 equipped with 360Â° swivel casters for easy mobility. The casters have locking devices and strong load- bearing capacity. 5 Type Configure Evacuation Rods: AUTOOL OD720 pneumatic oil pumping machine is equipped with 5 corrosion-resistant oil drain rods of different diameters, which are suitable for various vehicle oil inlets. Î¦5*L700mm (Cu, 1 Pcs) Oil extraction speed: 1.9L/Min Î¦6*L700mm (Cu, 1 Pcs) Oil extraction speed: 3.7L/Min Î¦5*L700mm (Pvc, 1Pcs) Oil extraction speed: 1.0L/Min Î¦6*L700mm (Pvc, 1Pcs) Oil extraction speed: 2.0L/Min Î¦8*L700mm (Pvc, 1Pcs) Oil extraction speed: 6.5L/Min
Operations Instruction Installation Rotate the measuring cup assembly âclockwise" to secure it onto the positioning seat of the oil storage tank. Fix the lifting rod and oil pan funnel in place by rotating in the "clockwise" direction. After confirming the correct orientation of the measuring cup assembly, lock it in place. After installation, ensure that the lifting pole is in a vertical position relative to the equipment. Adjust the lifting rod device by turning it counterclockwise to adjust the height of the lifting rod oil pan funnel. Turn it clock-wise to tighten. Measuring Cup Oil Extraction Set the measuring cup valve to the middle slot position (valve closed). Close the valve on the oil extraction hose and connect the corresponding vehicle-specific oil extract needle tube. Connect the air supply to the vacuum generator's air intake port, and open the air supply valve. Adjust the vacuum pressure gauge needle to the rated nega-tive pressure of 50~65cmHg. Insert the oil extract needle tube into the engine compartment, open the valve on the oil extraction hose, and begin extracting waste oil. Measuring Cup Oil Draining Empty the waste oil from the measuring cup into the oil storage tank below. When the oil level in the measuring cup reaches the warming line, empty the waste oil from the measuring cup. Press and rotate the measuring cup valve to the top left or right slot position (valve open). Waste oil inside the measuring cup will automatically flow into the oil storage tank. Waste Oil Recovery Use a lifting device to raise the vehicle to a suitable height. Ensure a safe working environment and position the equip-ment under the vehicle engine with the oil pan funnel aligned with the engine's drain hole. Unscrew the vehicle's engine oil drain plug. The waste oil will be discharged into the storage tank through the oil pan funnel. Waste Oil Discharge of Oil Storage Tank Close the measuring cup push-button valve. Close the oil discharge pipe valve. Close the oil tank inlet valve. Connect the air supply to the oil tank inlet valve. Open the oil tank inlet valve and pressurize it. Once it reaches a certain pressure, the check valve will automatically close. When the pressure inside the oil tank exceeds 1.0 bar, the safety valve will automatically release the pressure. After 5 seconds, slowly open the oil drain valve. After discharging the oil, cut off the air supply.
Rotate the measuring cup assembly âclockwise" to secure it onto the positioning seat of the oil storage tank.
Fix the lifting rod and oil pan funnel in place by rotating in the "clockwise" direction.
After confirming the correct orientation of the measuring cup assembly, lock it in place.
After installation, ensure that the lifting pole is in a vertical position relative to the equipment.

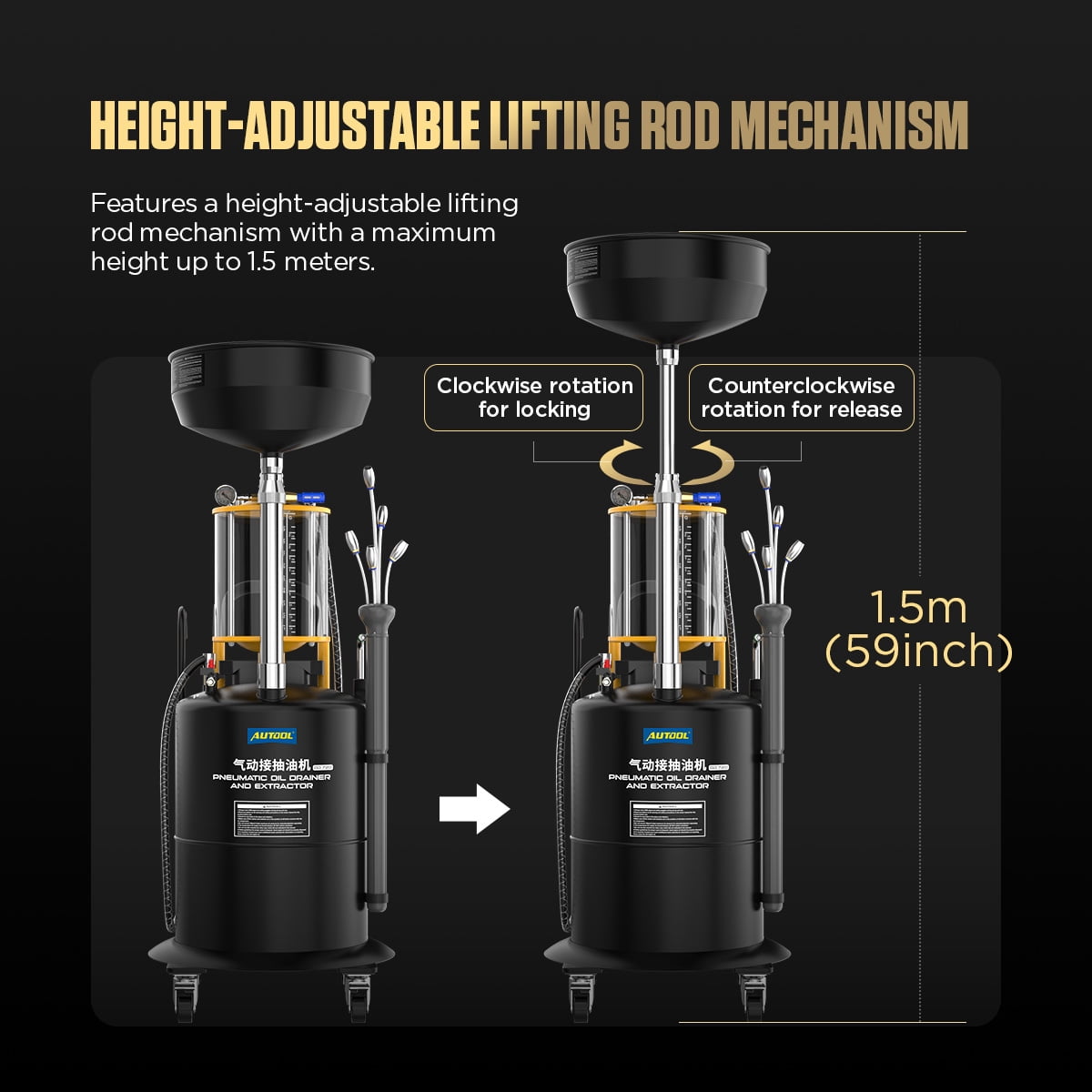

Adjust the lifting rod device by turning it counterclockwise to adjust the height of the lifting rod oil pan funnel. Turn it clock-wise to tighten.
Set the measuring cup valve to the middle slot position (valve closed).
Close the valve on the oil extraction hose and connect the corresponding vehicle-specific oil extract needle tube.
Connect the air supply to the vacuum generator's air intake port, and open the air supply valve.
Adjust the vacuum pressure gauge needle to the rated nega-tive pressure of 50~65cmHg.
Insert the oil extract needle tube into the engine compartment, open the valve on the oil extraction hose, and begin extracting waste oil.
Empty the waste oil from the measuring cup into the oil storage tank below.
When the oil level in the measuring cup reaches the warming line, empty the waste oil from the measuring cup.
Press and rotate the measuring cup valve to the top left or right slot position (valve open). Waste oil inside the measuring cup will automatically flow into the oil storage tank.
Use a lifting device to raise the vehicle to a suitable height.
Ensure a safe working environment and position the equip-ment under the vehicle engine with the oil pan funnel aligned with the engine's drain hole.
Unscrew the vehicle's engine oil drain plug.
The waste oil will be discharged into the storage tank through the oil pan funnel.
Close the measuring cup push-button valve.
Close the oil discharge pipe valve.
Close the oil tank inlet valve.
Connect the air supply to the oil tank inlet valve.
Open the oil tank inlet valve and pressurize it. Once it reaches a certain pressure, the check valve will automatically close. When the pressure inside the oil tank exceeds 1.0 bar, the safety valve will automatically release the pressure.
After 5 seconds, slowly open the oil drain valve.
After discharging the oil, cut off the air supply.
Rotate the measuring cup assembly âclockwise" to secure it onto the positioning seat of the oil storage tank.
Fix the lifting rod and oil pan funnel in place by rotating in the "clockwise" direction.
After confirming the correct orientation of the measuring cup assembly, lock it in place.
After installation, ensure that the lifting pole is in a vertical position relative to the equipment.
Adjust the lifting rod device by turning it counterclockwise to adjust the height of the lifting rod oil pan funnel. Turn it clock-wise to tighten.
Set the measuring cup valve to the middle slot position (valve closed).
Close the valve on the oil extraction hose and connect the corresponding vehicle-specific oil extract needle tube.
Connect the air supply to the vacuum generator's air intake port, and open the air supply valve.
Adjust the vacuum pressure gauge needle to the rated nega-tive pressure of 50~65cmHg.
Insert the oil extract needle tube into the engine compartment, open the valve on the oil extraction hose, and begin extracting waste oil.
Empty the waste oil from the measuring cup into the oil storage tank below.
When the oil level in the measuring cup reaches the warming line, empty the waste oil from the measuring cup.
Press and rotate the measuring cup valve to the top left or right slot position (valve open). Waste oil inside the measuring cup will automatically flow into the oil storage tank.
Use a lifting device to raise the vehicle to a suitable height.
Ensure a safe working environment and position the equip-ment under the vehicle engine with the oil pan funnel aligned with the engine's drain hole.
Unscrew the vehicle's engine oil drain plug.
The waste oil will be discharged into the storage tank through the oil pan funnel.
Close the measuring cup push-button valve.
Close the oil discharge pipe valve.
Close the oil tank inlet valve.
Connect the air supply to the oil tank inlet valve.
Open the oil tank inlet valve and pressurize it. Once it reaches a certain pressure, the check valve will automatically close. When the pressure inside the oil tank exceeds 1.0 bar, the safety valve will automatically release the pressure.
After 5 seconds, slowly open the oil drain valve.
After discharging the oil, cut off the air supply.
Warm Tips (This equipment has been tested and qualified before leaving the factory. Do not make any unauthorized changes or disas-semble the equipment; otherwise, serious consequences may occur, and our company will not be held responsible.) The engine must remain turmned off throughout the operation. No smoking or open flames during operation. Keep away from high-temperature, high-pressure,flammable, and explosive areas. Be cautious of scalding when handling waste oil with a temperature between 40~60Â°C. During operation, protect your eyes and hands (wearing gloves and safety goggles is recommended). The air source pressure must not be lower or higher than the specified pressure to ensure the proper functioning of the equipment. If any hose or other components leak during operation, imme- diately shut off the air supply and conduct a detailed inspection to eliminate the problem. Do not use the lifting rod as a handle for moving. If there is any looseness in the adjustment screws, please tighten them back to their original position. After extracting waste oil, promptly empty the waste oil from the measuring cup into the storage tank to protect the measur-ing cup better and extend its service life. After emptying the waste oil from the measuring cup, there is no need to close the measuring cup's drain valve. After completing the equipment operation, release the internal pressure, clean the equipment, and avoid equipment damage and personnel injury due to improper operation. Prohibited usage for extracting brake oil, gasoline, diesel, methanol, ketone, or other flammable liquids. For maintenance services, please contact an authorized, don't attempt to repair it yourself. If machine damage or personnel accidents occur due to non-compliance with the instructions,our company will not be held responsible and will not provide warranty support.
The engine must remain turmned off throughout the operation.
No smoking or open flames during operation. Keep away from high-temperature, high-pressure,flammable, and explosive areas.
Be cautious of scalding when handling waste oil with a temperature between 40~60Â°C.
During operation, protect your eyes and hands (wearing gloves and safety goggles is recommended).
The air source pressure must not be lower or higher than the specified pressure to ensure the proper functioning of the equipment.
If any hose or other components leak during operation, imme- diately shut off the air supply and conduct a detailed inspection to eliminate the problem.
Do not use the lifting rod as a handle for moving. If there is any looseness in the adjustment screws, please tighten them back to their original position.
After extracting waste oil, promptly empty the waste oil from the measuring cup into the storage tank to protect the measur-ing cup better and extend its service life.
After emptying the waste oil from the measuring cup, there is no need to close the measuring cup's drain valve.
After completing the equipment operation, release the internal pressure, clean the equipment, and avoid equipment damage and personnel injury due to improper operation.
Prohibited usage for extracting brake oil, gasoline, diesel, methanol, ketone, or other flammable liquids.
For maintenance services, please contact an authorized, don't attempt to repair it yourself.
If machine damage or personnel accidents occur due to non-compliance with the instructions,our company will not be held responsible and will not provide warranty support.
The engine must remain turmned off throughout the operation.
No smoking or open flames during operation. Keep away from high-temperature, high-pressure,flammable, and explosive areas.
Be cautious of scalding when handling waste oil with a temperature between 40~60Â°C.
During operation, protect your eyes and hands (wearing gloves and safety goggles is recommended).
The air source pressure must not be lower or higher than the specified pressure to ensure the proper functioning of the equipment.
If any hose or other components leak during operation, imme- diately shut off the air supply and conduct a detailed inspection to eliminate the problem.
Do not use the lifting rod as a handle for moving. If there is any looseness in the adjustment screws, please tighten them back to their original position.
After extracting waste oil, promptly empty the waste oil from the measuring cup into the storage tank to protect the measur-ing cup better and extend its service life.
After emptying the waste oil from the measuring cup, there is no need to close the measuring cup's drain valve.
After completing the equipment operation, release the internal pressure, clean the equipment, and avoid equipment damage and personnel injury due to improper operation.
Prohibited usage for extracting brake oil, gasoline, diesel, methanol, ketone, or other flammable liquids.
For maintenance services, please contact an authorized, don't attempt to repair it yourself.
If machine damage or personnel accidents occur due to non-compliance with the instructions,our company will not be held responsible and will not provide warranty support.

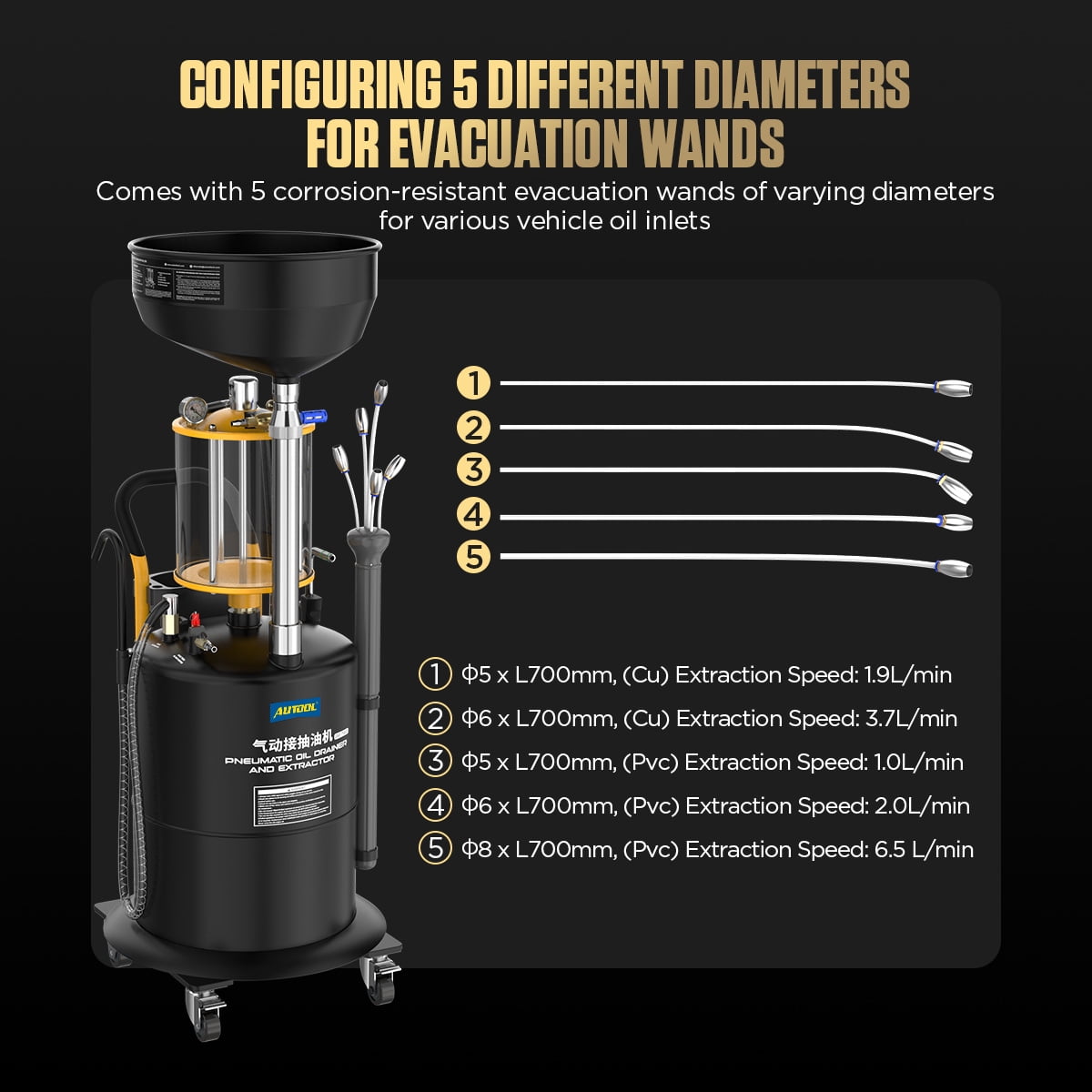

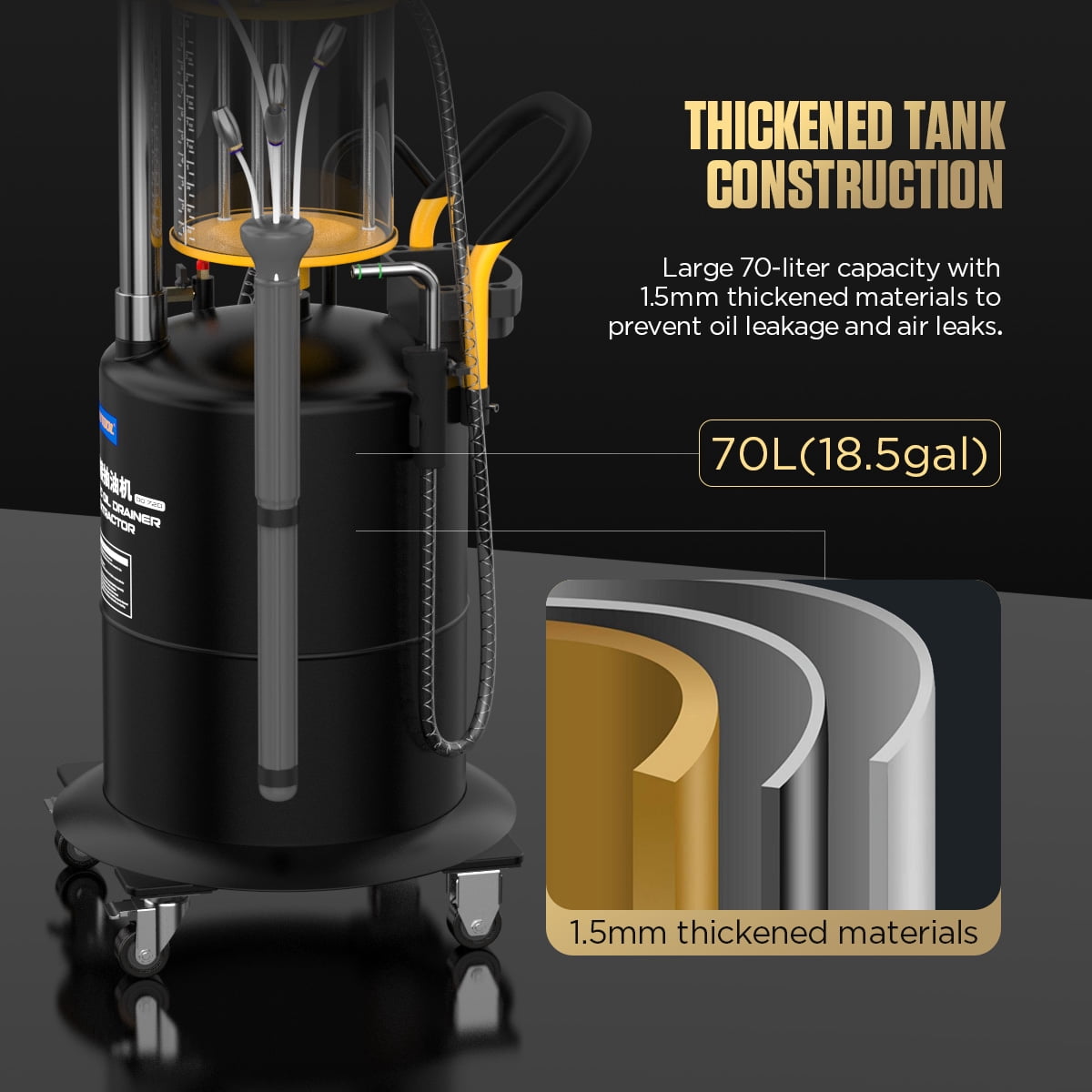

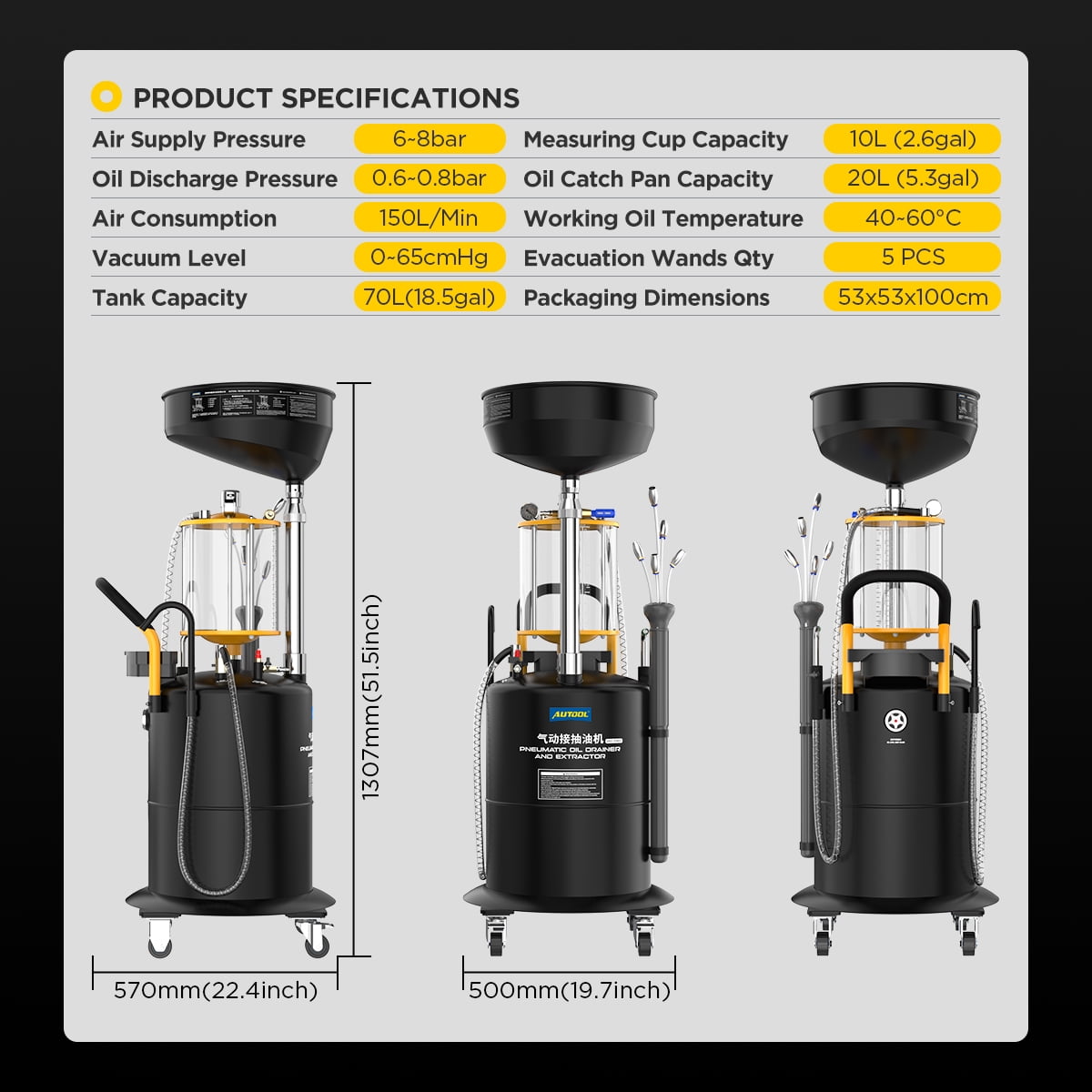

Specification Air Supply Pressure: 6~8bar Oil Discharge Pressure: 0.6~0.8bar Air Consumption: 150L/Min Vacuum Level: 0~65cmHg Tank Capacity: 70L(18.5 Gal) Measuring Cup Capacity: 10L (2.6 Gal) Oil Pan Funnel Capacity: 20L (5.3 Gal) Working Oil Temperature: 40~60Â°C Evacuation Wands Qty: 5 PCS OD720 Dimensions: 19.7 x 22.4 x 51.5" Weight: 74.96 lbs

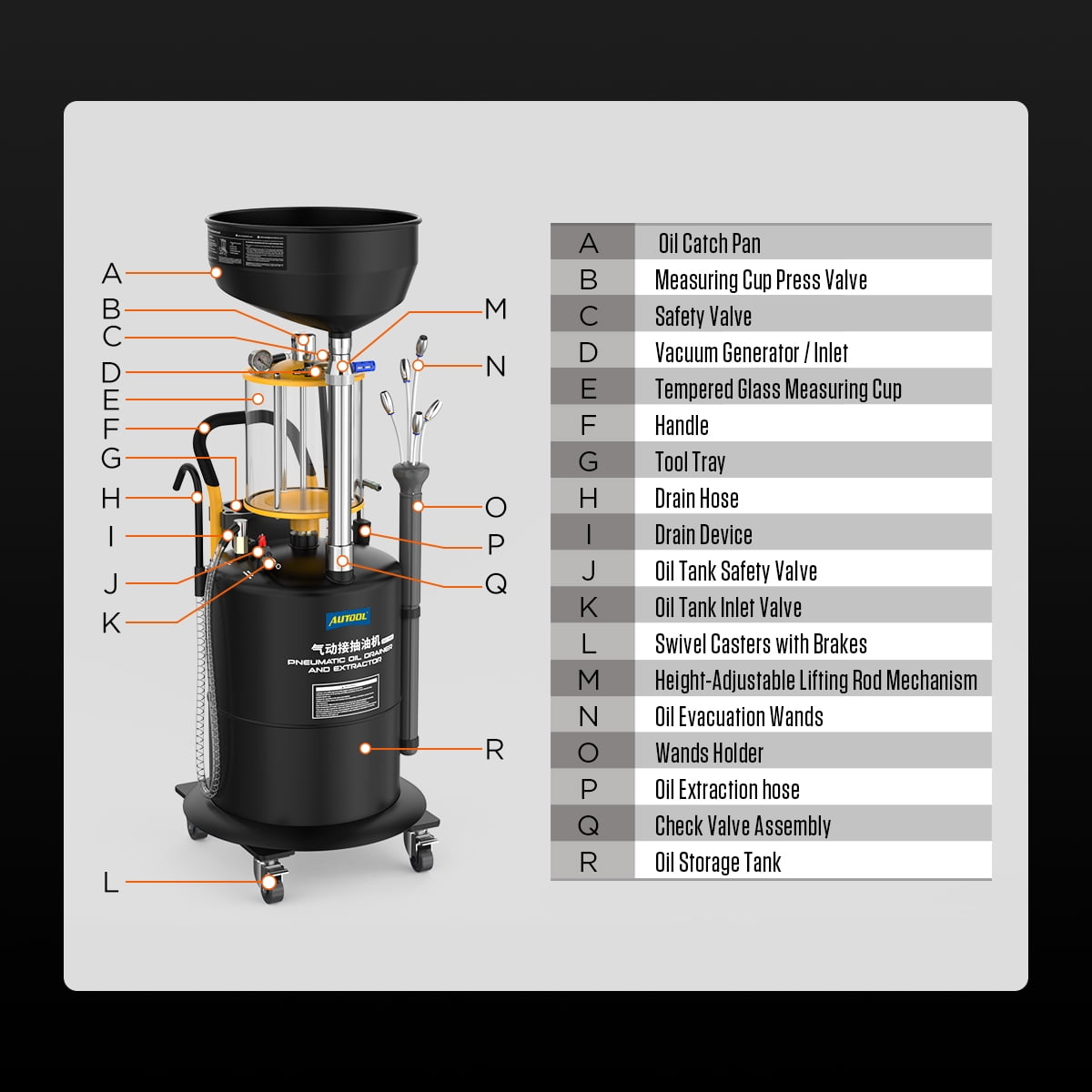

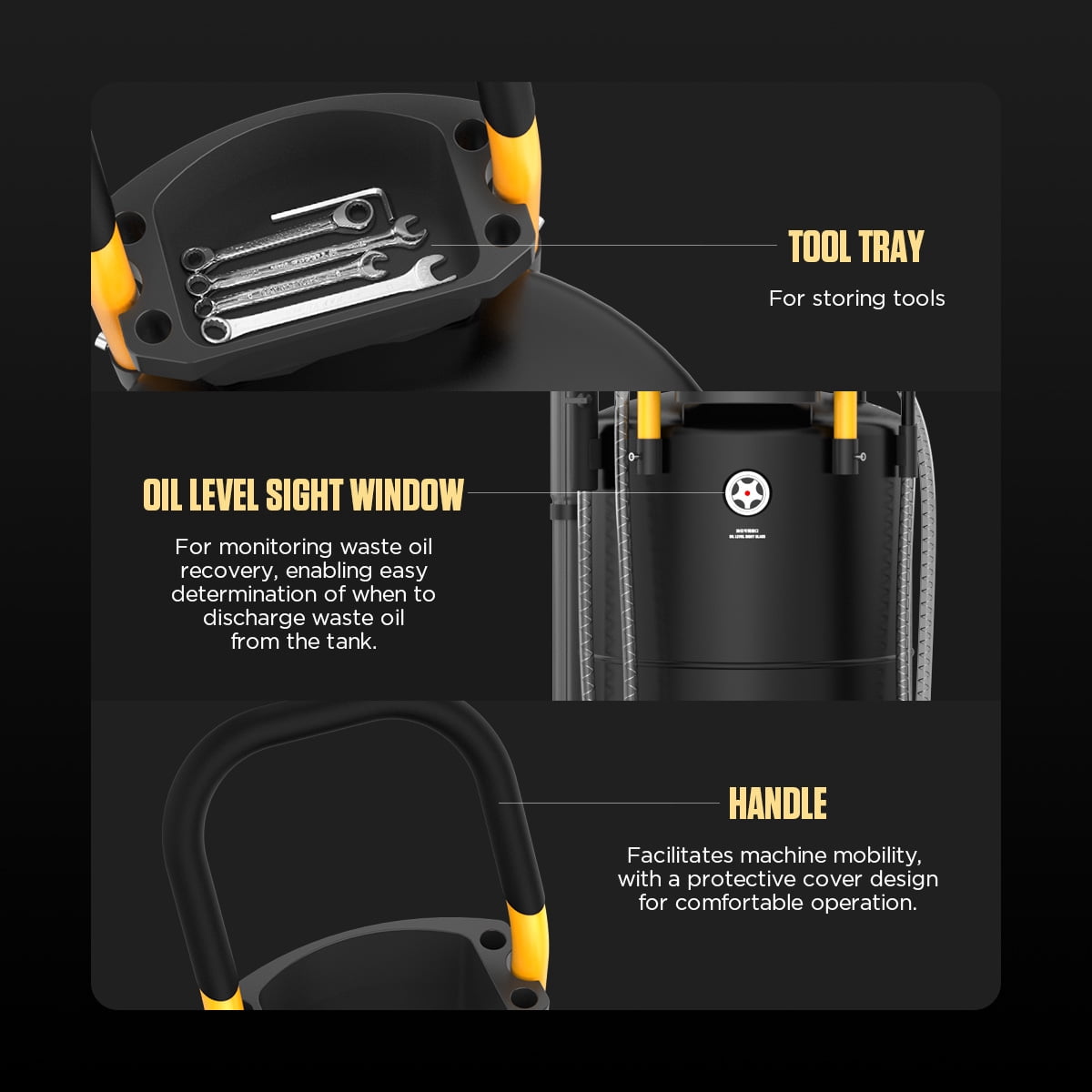

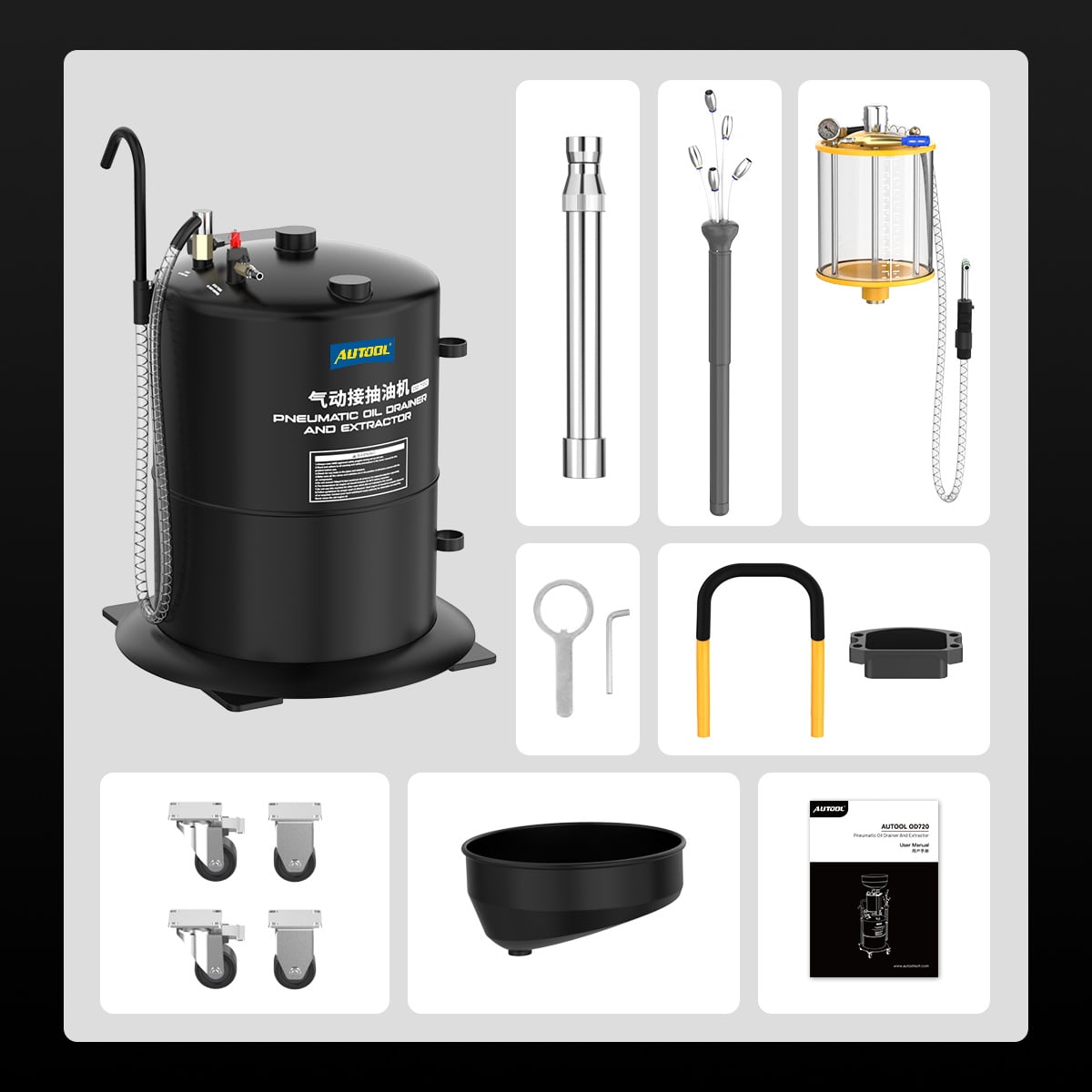

Package Includes 1 x Oil Catch Pan 1 x Measuring Cup Press Valve 1 x Safety Valve 1 x Vacuum Generator / Inlet 1 x Tempered Glass 1 x Measuring Cup 1 x Tool Tray 1 x Handle 1 x Drain Hose 1 x Drain Device 1 x Oil Tank Safety Valve 1 x Oil Tank Inlet Valve 1 x Swivel Casters With Brakes 1 x Height-Adjustable Lifting 1 x Rod Mechanism 1 x Oil Evacuation Wands 1 x Oil Extraction Hose 1 x Wands Holder 1 x Check Valve Assembly 1 x Oil Storage Tank 1 x User Manual
Features: Non-Slip Grip
Brand: Autool
Manufacturer: OUFKAR
Assembled Product Dimensions (L x W x H): 19.70 x 51.50 x 22.40 Inches
